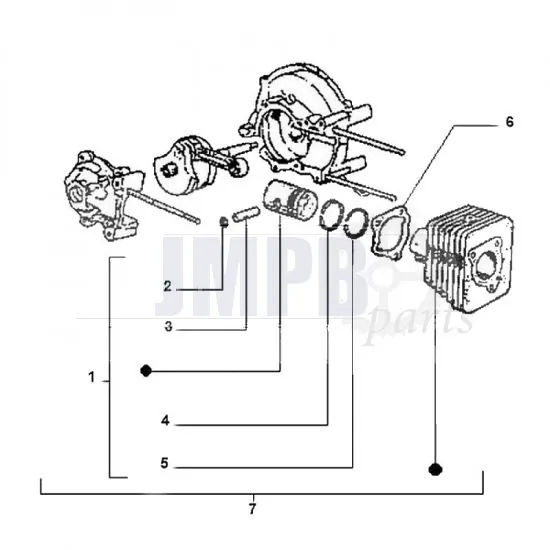

Exploded view drawing cylinder Vespa Ciao

Grouped product items
Product Name	Qty
1 - Piston 38.2MM Standard Pin 12 Vespa Piston for the original Cylinder of a Citta The diameter is 38.2MM Note! Piston pin is 12MM Fits on: Gilera Citta Vespa Ciao Vespa Si Vespa Bravo DKK 116.60	Out of stock
1 - Piston 38.2MM Standard Pin 10 Vespa Piston for an original cylinder of a Citta The diameter is 38.2MM Piston pin is 10MM Fits on: Gilera Citta Vespa Ciao Vespa Si Vespa Bravo DKK 85.40
2 - Piston pin clips 10MM 2 Pieces Piston pin clips 2 Pieces Fits on a 10MM piston pin DKK 7.72
2 - Piston pin clips 12MM 2 Pieces Piston pin clips 2 Pieces Fits on a 12MM Piston pin DKK 9.75
4 - Piston Ring Citta / Ciao 38.2 X 1.5C Piston ring standard model 38.2MM X 1.5 C Gilera Citta Vespa Ciao Vespa SI This ring is in the bottom hole DKK 19.42
5 - Piston Ring Citta / Ciao 38.2 X L Piston ring standard model 38.2MM X L Gilera Citta Vespa Ciao Vespa SI This ring is in the upper hole DKK 30.42
6 - Base gasket Citta/Ciao Big Base gakset big Fits on; Many 60 / 65CC cylinders Fast 50CC cylinders For; Gilera Citta Vespa Ciao Vespa SI Vespa Bravo DKK 12.48
6 - Base gasket Citta/Ciao Standard Base gasket Standard Gilera Citta Vespa Ciao Vespa SI / Bravo DKK 5.85
6 - Base gasket Citta/Ciao Aluminum Base gasket Aluminum. Gilera Citta Vespa Ciao Vespa SI DKK 10.92
7 - 50CC Cylinder Citta/Ciao/Si Standard P10 Standard Cylinder 49CC. Bore 38.2MM Cylinder content 49CC Material Cast iron Connection exhaust 22MM Outer diameter cylinder skirt 46MM Piston pin 10MM Gaskets included? No Fits on; Gilera Citta Vespa Ciao Vespa Si Vespa Bravo Note, this cylinder has a skirt diameter of 46MM, does not fit on every carter, because some models are speed limited. This cylinder does not fit the following models: Vespa Ciao MIX 25KM Gilera Citta new model (with electric ignition) Vespa Ciao new model 25KM Vespa SI MIX 25KM Special Price DKK 272.59 Regular Price DKK 311.59
7 - 50CC Cylinder Citta/Ciao/Si Standard P12 Standard Cylinder 49CC. Bore 38.2MM Cylinder content 49CC Material Cast iron Connection exhaust 22MM Outer diameter cylinder skirt 46MM Piston pin 12MM Gaskets included? No Fits on; Gilera Citta Vespa Ciao Vespa Si Vespa Bravo Note, this cylinder has a cylinder skirt diameter of 46MM, does not fit on every carter, because some models are speed limited. This cylinder does not fit the following models: Vespa Ciao MIX 25KM Gilera Citta new model (with electric ignition) Vespa Ciao new model 25KM Vespa SI MIX 25KM DKK 311.21

50CC Cylinder Citta/Ciao/Si DR P12
Special Price DKK 779.88 Regular Price DKK 928.15
60CC Cylinder Citta/Ciao/Si DMP P10
DKK 503.08
50CC Cylinder Citta/Ciao/Si DR P10
Special Price DKK 779.88 Regular Price DKK 928.15
Cylinder head Vespa Ciao

Starting at DKK 0.79

Cylinder Vespa Ciao
