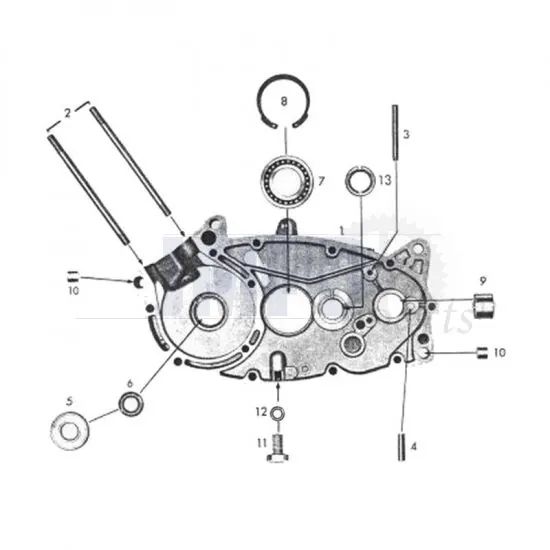

Zundapp 517 Crankcase Right

• Cylinder Stud M7 X 120
• A-Quality
• A piece
  Fits;
• Zundapp ( Not liquid cooled )

Cylinder studs

• Zundapp
• Includes Nuts
• A 4 pieces
• M7 X 120MM

• Locking pin
• 5X45MM
• For the Kickstart axle
• Zundapp
• See in the extra image Nr 3

• Spanstift 6X24
• Blokkeerpen schakelklok
• Zundapp
• Zie extra afbeelding nr 4

• Bearing
• 6202 Z C3
• One side sealing
• Inner diameter 15MM
• Outer diameter 35MM
• Width 11MM

Seal

• Size: 15X24X7
• Double sealed

  Fits on:

• Zundapp crankshaft right
• Kreidler main axle

• Bearing SKF
• 16005
• Inner diameter 25MM
• Outer diameter 47MM
• Width 8MM
  As used in ;
• Zundapp 3/4/5 Gear. Axle right

• Bearing SKF
• 16005 C3
• Inner diameter 25MM
• Outer diameter 47MM
• Width 8MM
  As used in ;
• Zundapp 3/4/5 Gears Clutch housing

• Circlip House
• 47MM
• Din 472
• A Piece

Drain plug bottomside Stainless Steel.

• Zundapp
• Including Sealing

Copper ring 10X20MM
Thickness 1,5MM
Din 7603A

• Bearing bushing
• Zundapp
• 18X23X8.2MM
