Crankcase Puch Maxi

Grouped product items

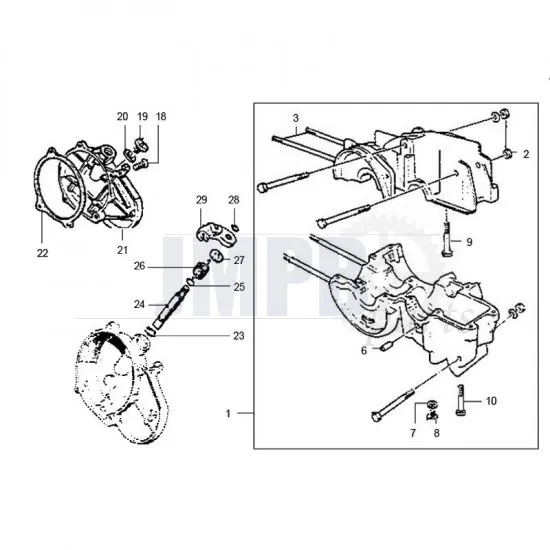

Product Name	Qty
1 - Crankcase set Puch Maxi E50 as Original Crankcase set E50 Model as original Push-start engine 25km/h Version 4 Bearing cases Dowel pins in crankcases Note, crankcase bolts not included For 45km/h remove limiters: Cam for cylinder skirt Cam base plate ignition Cam front sprocket Extra: Larger surface for the cylinder, for custom milling of the transfer ports Extra material on the ignition side, so no more holes when milling the transfer ports Fits on: Puch Maxi N Puch Maxi S Puch X30 Puch X40 Puch Magnum Special Price DKK 2,332.08 Regular Price DKK 3,112.04
1 - Crankcase set Puch Maxi E50 Kickstart Crankcase set E50 Model as original Kickstart engine 4 bearing cases Kickstart cover and centre stand block included Dowel pins in crankcases and kickstart lid Note, crankcase bolts not included Note: To mount a larger cylinder than 38MM, the cam / lug on the cylinder side must be milled away. Fits on: Puch Maxi N Puch Maxi S Puch X30 Puch X40 Puch Magnum X Special Price DKK 2,332.08 Regular Price DKK 3,112.04
2 - M8 Locknut SS Din 985 M8 Locknut Stainless Steel Din 985 DKK 2.73

3 - Cylinder studs and Collar nuts Puch Maxi Cylinder studs Collar nuts included Puch Maxi DKK 27.30
3 - Set Cylinder Studs Puch Set of 4 cylinder studs All Puch 50CC to 74CC models Thread M6 M6X106 Fits a.o: Puch Maxi Puch Monza Puch MV/MS/VS Puch M50 Puch Magnum DKK 30.81
7 - Fiber ring Drain plug Puch Maxi Fiber ring Drain plug. ( Underside block ) Puch Maxi DKK 1.56
8 - Oil Filler Cap / Drain Plug Set Puch Maxi Oil change plug set Puch Maxi Set contains; Filler cap Fiber ring filler cap Drain plug Fiber ring drain plug DKK 15.21
9 - Bolts/Nuts set engine Puch Maxi Bolts, Nuts & rings set 34-pieces Set for the engine Puch Contains; Allen bolts for the crankcase halves Selflocking nuts for the manifold 3D connection nuts for the cylinderhead & Exhaust DKK 38.61
19 - Oil Filler Cap Puch Maxi Oil filler cap Plug on the bottom side of the engine To use for; Puch Maxi DKK 9.75
20 - Fiber ring Filler Puch Maxi Fiber ring Filler Puch Maxi DKK 1.95
21 - Clutch lid Puch Maxi - Run-up Clutch lid Puch Maxi. Run-up model. DKK 272.59
22 - Clutch Lid Gasket Puch Maxi BAC Clutch lid gasket BAC Thickness 0.5MM Puch Maxi Run-up engines DKK 10.92
25 - O-Ring clutch pin Puch Maxi O-Ring for the clutch pin . Puch Maxi DKK 5.85
26 - Spring for Clutch lever Puch Maxi Spring for Clutch lever Puch Maxi DKK 42.90	Out of stock
27 - Rubber ring below clutch lever Puch Rubber ring below clutch lever Puch Maxi Puch 2/3 gears DKK 16.38	Out of stock
28 - Clip for Clutch Lever Puch Clip For clutch lever For a.o: Puch Maxi Puch MV/MS Puch Monza DKK 1.95
29 - Clutch lever Puch Maxi Clutch / Decompression Lever On engine Puch Maxi For run-up, models DKK 50.70

1 - Crankcase set Puch Maxi E50 as Original

Crankcase set E50

Model as original

Push-start engine

25km/h Version

4 Bearing cases

Dowel pins in crankcases

Note, crankcase bolts not included

For 45km/h remove limiters:

Cam for cylinder skirt

Cam base plate ignition

Cam front sprocket

Extra:

Larger surface for the cylinder, for custom milling of the transfer ports

Extra material on the ignition side, so no more holes when milling the transfer ports

Fits on:

Puch Maxi N

Puch Maxi S

Puch X30

Puch X40

Puch Magnum

Special Price DKK 2,332.08 Regular Price DKK 3,112.04

1 - Crankcase set Puch Maxi E50 Kickstart

Crankcase set E50

Model as original

Kickstart engine

4 bearing cases

Kickstart cover and centre stand block included

Dowel pins in crankcases and kickstart lid

Note, crankcase bolts not included

Note:

To mount a larger cylinder than 38MM, the cam / lug on the cylinder side must be milled away.

Fits on:

Puch Maxi N

Puch Maxi S

Puch X30

Puch X40

Puch Magnum X

Special Price DKK 2,332.08 Regular Price DKK 3,112.04

2 - M8 Locknut SS Din 985

M8 Locknut

Stainless Steel

Din 985

DKK 2.73

3 - Cylinder studs and Collar nuts Puch Maxi

Cylinder studs

Collar nuts included

Puch Maxi

DKK 27.30

3 - Set Cylinder Studs Puch

Set of 4 cylinder studs

All Puch 50CC to 74CC models

Thread M6

M6X106

Fits a.o:

Puch Maxi

Puch Monza

Puch MV/MS/VS

Puch M50

Puch Magnum

DKK 30.81

7 - Fiber ring Drain plug Puch Maxi

Fiber ring Drain plug. ( Underside block )
Puch Maxi

DKK 1.56

8 - Oil Filler Cap / Drain Plug Set Puch Maxi

Oil change plug set

Puch Maxi

Set contains;

Filler cap

Fiber ring filler cap

Drain plug

Fiber ring drain plug

DKK 15.21

9 - Bolts/Nuts set engine Puch Maxi

Bolts, Nuts & rings set

34-pieces

Set for the engine Puch

Contains;

Allen bolts for the crankcase halves

Selflocking nuts for the manifold

3D connection nuts for the cylinderhead & Exhaust

DKK 38.61
