20. Zundapp 529 Swingarm / Closed Shock absorbers

20. Zundapp 529 Swingarm / Closed Shock absorbers

20. Zundapp 529 Swingarm / Closed Shock absorbers

Be the first to review this product Be the first to review this product

Grouped product items
Product Name	Qty
2 - Swing Axle Zundapp New Type Galvanised Swing axle Zundapp 529/530 Galvanised New model Note, comes without nut Total length of the axle is 200MM Thickness of the axle at the thickening is 14MM DKK 58.50
2 - Swingarm Axle Zundapp New Type SS Swingarm Axle Zundapp 529/530 Stainless Steel New model Note, comes without nut Total length of the axle is 200MM Thickness of the axle at the thickening is 14MM DKK 194.60
3 - Securing plate Swing axle Zundapp 529/530 Securing plate for Swing axle Zundapp 529 / 530 DKK 7.72
4 - Swing Axle Nut Zundapp New Type Galvanised Swing axle nut New type Galvanised Zundapp 529/530 DKK 4.68
5 - Chainguard Zundapp 530 NT Chainguard Zundapp new type Zundapp 529/530 Note: B-quality, poor chrome / scratched For a better quality stainless steel chain guard see related products DKK 179.00
7 - M6 Lock washer SS Din 6798A Lock washer M6 Stainless Steel DIN 6798A DKK 0.70
8 - Hex bolt M6X10 Galvanized Din 933 Hex bolt. M6X10 Galvanized Din 933 DKK 0.79
9 - Pan Cylinder head screw Slotted SS M6X12 Pan Cylinder head screw Slotted. Stainless Steel. M6X12 DKK 12.48
10 - M6 Spring washer Flat Galvanized Din 127 M6 Spring washer Flat Galvanized Din 127 DKK 0.15
11 - M6 Nut Galvanized Din 934 Nut M6 Galvanized Din 934 DKK 0.31
12 - Shock absorbers Zundapp 517 Closed Shock absorbers Fits on a Zundapp 517 Closed model Length from center till center is 315MM Diameter chrome bush 51MM Diameter lower 40MM Diameter mounting holes 8MM DKK 694.16
16 - Hex bolt M8X35 Stainless Steel Din 933 Hex bolt M8X35 Stainless Steel Full thread Din 933 DKK 2.26
17 - M8 Washer SS Din 125A M8 Washer Stainless Steel Din 125A DKK 0.55
18 - Hex bolt M8X60 SS Din 933 Hex bolt M8X60 Stainless Steel Full thread Din 933 DKK 5.46
21 - Hex bolt M8X40 SS Din 931 Hex bolt M8 X 40. Stainless Steel. Part thread Din 931 DKK 3.51
22 - Footrest bar Zundapp Chrome Original Rubbers Footrest bar Model with original rubbers Chromed Zundapp old model ( 1971 until 1983 ) See images for sizes DKK 218.00	Out of stock
23 - Footrest Rubber Zundapp KS/CS/GTS A piece Footrest rubber With logo A piece Zundapp KS50 Zundapp CS50 Zundapp GTS50 Total length 92MM Outer diameter 36MM Inner diameter 17MM DKK 46.40
24 - Hex bolt M8X20 SS Din 933 Hex bolt M8 X 20. Stainless Steel. Full thread Din 933 DKK 2.35

In stock, immediately available.

In stock

SKU

--EXP-529-020

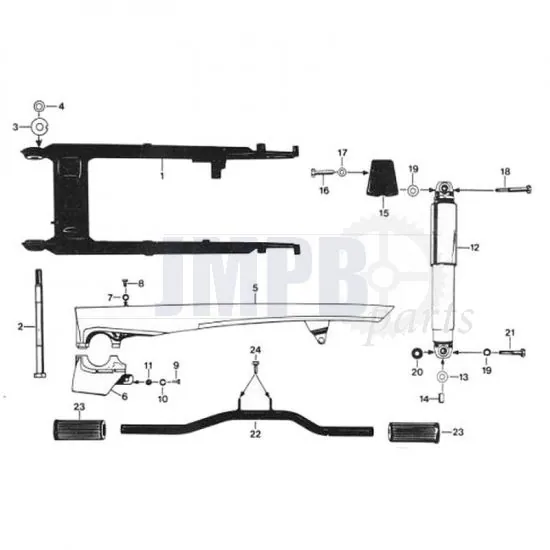

Exploded view
Swingarm / Shock absorbers - Closed model
Zundapp 529

Exploded view
Swingarm / Shock absorbers - Closed model
Zundapp 529
