25. Zundapp 529 Rear wheel hub 150MM

Grouped product items
Product Name Qty
3 - Bearing 6301 2RS SKF
Bearing 6301 2RS SKF
  • Bearing SKF
  • 6301 2RS
  • Inner diameter 12MM
  • Outer diameter 37MM
  • Width 12MM
    Is used for example;
  • Zundapp Wheels front and Rear ( Alu Rims)
DKK 62.00
4 - Circlip Big Hub Zundapp
Circlip Big Hub Zundapp
  • Circlip
  • Zundapp 529/530
  • For big Hub ( 150MM )
  • A Piece

  • See extra image

DKK 4.29
5 - Spacer Rear Wheel Right Zundapp Galvanized
Spacer Rear Wheel Right Zundapp Galvanized
  • Spacer Rear wheel Right
  • Galvanized
  • Zundapp
DKK 38.61
6 - Hollow axle Zundapp NT
Hollow axle Zundapp NT
  • Hollow axle
  • Includes nut
  • New type
  • Zundapp 529/530

DKK 66.30
7 - Spacer Rear wheel Left Zundapp Galvanized
Spacer Rear wheel Left Zundapp Galvanized
  • Spacer Rear wheel
  • Left
  • Zundapp

  • See images for sizes

DKK 54.20
8 - Nut M14 X 1 Hollow axle Zundapp
Nut M14 X 1 Hollow axle Zundapp

Hollow axle nut

  • Zundapp
DKK 12.87
9 - Rear axle Zundapp SS
Rear axle Zundapp SS
  • Rear axle
  • Stainless Steel
  • Zundapp
  • M12x1.25
  • Length 167MM
DKK 226.19
9 - Rear wheel axle Zundapp Key width 14MM
Rear wheel axle Zundapp Key width 14MM
  • Rear wheel axle
  • Zundapp
  • Key width 14MM
  • 12MM
  • Length 164MM
DKK 46.71
10 - Chain tensioner Zundapp oval hole left
Chain tensioner Zundapp oval hole left

Chain tensioner Zundapp.

Model: Oval hole left

Identical to zundapp article number
Z529-15.700

DKK 11.70
11 - Chain tensioner Zundapp round hole right
Chain tensioner Zundapp round hole right

Chain tensioner Zundapp.

Model: Round hole Right

Identical to zundapp article number
Z529-15.711


DKK 12.09
12 - Sprocket rubber Zundapp New Model A Piece
Sprocket rubber Zundapp New Model A Piece
  • Sprocket rubber
  • Fits on a Zundapp New model
  • Large rubbers
  • Note, These are per piece
  • Sizes: 19X29X12MM
DKK 5.46
13 - Holder Rear Sprocket Zundapp 517 / 529 150MM
Holder Rear Sprocket Zundapp 517 / 529 150MM
  • Holder Rear Sprocket
  • 150MM / Including bearing
  • Zundapp 517 / 529
  • Note, might contain some minor edge damage
DKK 241.39
14 - M8 Locknut Galvanized Din 985
M8 Locknut Galvanized Din 985

M8 Locknut
Galvanized
Din 985

DKK 1.17
15 - Hex bolt M8X25 Galvanized Din 933
Hex bolt M8X25 Galvanized Din 933

Hex bolt M8 X 25
Galvanized
Full thread
Din 933

DKK 1.17
16 - Bearing 6203 Z C3 Single Seal SKF
Bearing 6203 Z C3 Single Seal SKF
  • Bearing SKF
  • 6203 Z C3
  • One side sealed
  • Inner diameter 17MM
  • Outer diameter 40MM
  • Width 12MM

    Usable for a.o:
  • Zundapp 3/4/5 Gears crankshaft left
DKK 66.30
16 - Bearing 6203 2RS SKF
Bearing 6203 2RS SKF
  • Bearing SKF
  • 6203 2RS
  • Inner diameter 17MM
  • Outer diameter 40MM
  • Width 12MM
    Is used for:
  • Zundapp sprocket carrier
DKK 54.20
17 - Cover Plate set Sprocket Carrier Zundapp
Cover Plate set Sprocket Carrier Zundapp
  • Cover plate set for sprocket carrier
  • 3-Pieces

    Set contains:
  • 1x Cap (433-15.121)
  • 1x Felt ring (433-15.119)
  • 1x Cover plate (433-15.117)

    Fits a.o:
  • Zundapp 517
  • Zundapp 529
  • Zundapp 530
DKK 62.00
20 - Rear sprocket Zundapp Small ( 3/16 ) 41 Teeth
Rear sprocket Zundapp Small ( 3/16 ) 41 Teeth

Rear sprocket

  • Zundapp.
  • 41 Teeth.
  • Stitch 3/16 (Normal)
  • Use a 415 Chain.
DKK 105.30
20 - Rear sprocket Zundapp Small ( 3/16 ) 43 Teeth
Rear sprocket Zundapp Small ( 3/16 ) 43 Teeth

Rear sprocket

  • Zundapp.
  • 43 Teeth.
  • Stitch 3/16 (Normal)
  • Use a 415 Chain.
DKK 108.80
21 - Brake Shoes Zundapp Big
Brake Shoes Zundapp Big

Brake Shoes

  • Zundapp
  • For large hub ( 150MM )
  • Both front and rear

Identical to Zundapp item number
Z517-15 921

DKK 77.60
21 - Brake Shoes Zundapp Big hub A-Quality
Brake Shoes Zundapp Big hub A-Quality

Brake Shoes set

  • Zundapp
  • For big hub
  • A-Quality / Newfren
  • 150MM
DKK 210.20
25 - O-Ring Zundapp Brake key
O-Ring Zundapp Brake key

O-Ring.

  • Zundapp Brake key
  • See extra image
DKK 5.07
26 - Brake lever Behind Zundapp 529/530
Brake lever Behind Zundapp 529/530

Brake lever Behind.

  • Zundapp 529/530

Identical to Zundapp article number
Z530-15.611



DKK 54.20
27 - Nut Low Brake Key Zundapp
Nut Low Brake Key Zundapp
  • Nut
  • Brake key Zundapp all models
  • M8 - Low nut
  • A Piece
  • See extra image
DKK 1.56
28 - Chain Wippermann 415 - 122 Links
Chain Wippermann 415 - 122 Links
  • Chain
  • Wippermann
  • 415 ( 3/16 )
  • 122 Links
    Suitable for;
  • Tomos A3/A35
DKK 233.60
In stock, immediately available.
In stock
SKU
--EXP-529-025

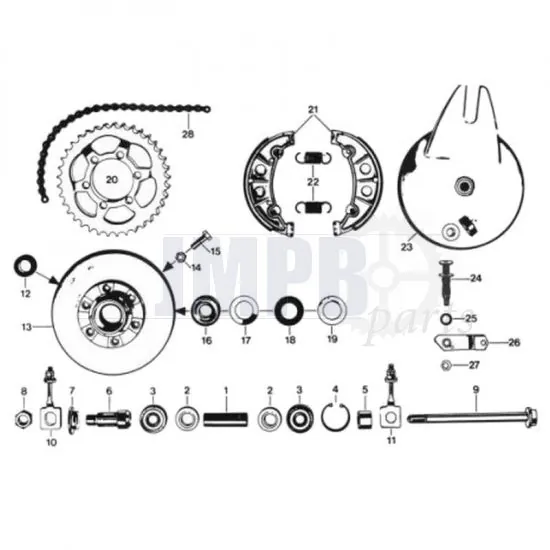

  • Exploded view
  • Rear wheel hub 150MM - Big hub
  • Zundapp 529
  • Exploded view
  • Rear wheel hub 150MM - Big hub
  • Zundapp 529
