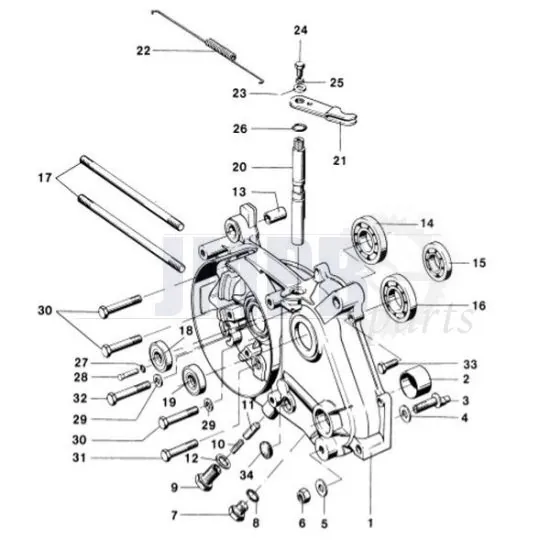

Exploded view left carter Kreidler 5G Direct geared

Grouped product items
Product Name	Qty
3 - Eccentric Bolt Kreidler 4/5G Direct Eccentric bolt Kreidler 4/5V Direct gearing DKK 128.70
4 - Sealing ring for Eccentric Bolt Kreidler Sealing ring Eccentric Bolt Kreidler 8,5 X 16 X 0,5MM DKK 7.72
5 - M8 Body disc Galvanized Din 9021 M8 Body disc Galvanized 30 X 1.5 Din 9021 DKK 1.17
5 - Ring 8MM Chrome Kreidler Fork plate / Eccentric bolt Ring chromed 8MM For mounting the upper plate Mounting eccentric bolt Kreidler DKK 13.65
6 - M8 Locknut Galvanized Din 985 M8 Locknut Galvanized Din 985 DKK 1.17
7 - Bolt Engine Low Kreidler 4/5 Gear SW13 Enginebolt Kreidler 4/5 Gear 12x1.5 SW13 A piece Color depending on stock, not possible to choose DKK 16.77
7 - Bolt Engine Low Kreidler 4/5 Gear SW17 Enginebolt Kreidler 4/5 Gear 12x1.5 SW17 DKK 40.95
8 - Sealing Oil Filler Cap / Drain Plug Kreidler Sealing For Oil filler cap / Drain plug Kreidler A Piece 12X16X2MM DKK 5.46
9 - Blocking plug bottom Engine block Kreidler Blocking plug bottom side engine block Kreidler DKK 85.40	Out of stock
10 - Pressure spring Foot gear Kreidler 3/4/5 G. Pressure spring foot gears Kreidler 3, 4 & 5 gears DKK 11.70
11 - Sleeve for Blocking plug Kreidler Sleeve for Blocking plug Kreidler direct transmission DKK 61.62
12 - Sealing Blocking plug Kreidler Sealing For blocking plug bottom engine Kreidler 4/5 Direct gear 14X18X2MM A Piece DKK 5.46
13 - Bushing Crankcase half Kreidler Bushing Crankcase / Carter half Kreidler DKK 27.69
14 - Bearing BO17 NSK Brass a piece Crankshaft bearing BO17 NSK / Brass cage Inner diameter 17MM Outer diameter 44MM Width 11MM A Piece Kreidler DKK 152.10

15 - Bearing 6201 C3 SKF Bearing 6201 C3 SKF Inner diameter 12MM Outer diameter 32MM Width 10MM Is a.o. use for; Kreidler Layshaft left Tomos main axle DKK 46.71
16 - Bearing 6302 C3 SKF Bearing SKF 6302 C3 Inner diameter 15MM Outer diameter 42MM Width 13MM Is used for example; Kreidler Main Axle Left Zundapp 4/5 Gears. Crankshaft Right DKK 58.50
17 - Cylinder studs Kreidler Cylinder studs Kreidler M8 X 120 4 Pieces DKK 46.40
18 - Crankshaft seal Kreidler VITON Crankshaft seal Kreidler VITON 17X28X7 A piece High temperature resistance / Long life Only useful with tuned engines! DKK 54.20
18 - Seal Zundapp/Kreidler 17X28X6.5 A-Quality Seal 17x28x6.5 ( A-Quality ) Double Sealed Crankshaft Kreidler Left & Right Crankshaft Zundapp Left DKK 46.40
18 - Crankshaft seal Kreidler Standard Crankshaft seal Kreidler Standard model 17X28X7 DKK 15.21
19 - Seal Zundapp 15x24x7 Double sealed Seal Size: 15X24X7 Double sealed Fits on: Zundapp crankshaft right Kreidler main axle DKK 23.01
20 - Clutch axle Kreidler 31 Teeth Clutch axle 31 teeth Kreidler Mounted from 14-6-1971 DKK 155.60
21 - Clutch lever Kreidler 31 Teeth Clutch lever Kreidler ( newer models ) 31 Teeth DKK 202.40	Out of stock
22 - Clutch spring Kreidler Clutch spring Kreidler DKK 21.45
23 - Ring for Clutch lever Kreidler Ring for clutch lever A Piece Kreidler DKK 6.63
24 - Hex bolt M6X12 Galvanized Din 933 Hexagon bolt M6X12 Galvanized Full thread Din 933 DKK 0.55
25 - M6 Spring washer Flat Galvanized Din 127 M6 Spring washer Flat Galvanized Din 127 DKK 0.15
26 - O-Ring Kreidler 10.1 X 1.6 Clutch shaft O-Ring 10.1 X 1.6 For clutch shaft Kreidler DKK 3.82
27 - Sealing Ring for Clutch Axle Kreidler Sealing ring For Clutch axle Kreidler DKK 7.72
28 - Notch Nail for Clutch axle Kreidler Notch Nail for Clutch axle Kreidler 3, 4 & 5 Gears DKK 15.52
29 - Sealing Enginehousing Left Kreidler Sealing For enginehousing left behind ignition plate Kreidler 6X10X1.5 A Piece DKK 4.68
30 - Hex bolt M6X80 Galvanized Din 931 Hex bolt M6 X 80 Galvanized Part thread Din 931 DKK 3.12
31 - Hex bolt M6X70 Galvanized Din 931 Hex bolt M6 X 70 Galvanized Part thread Din 931 DKK 3.12
32 - Hex bolt M6X85 Galvanized Din 931 Hex bolt M6 X 85 Galvanized Part thread Din 931 A piece DKK 5.46
33 - Hex bolt M6X30 Galvanized Din 931 Hex bolt. M6X30 Galvanized Din 931 DKK 1.56
34 - Freezer plate Crankcase Left Kreidler Freezer plate Crankcase / Carter Left Kreidler DKK 13.65
