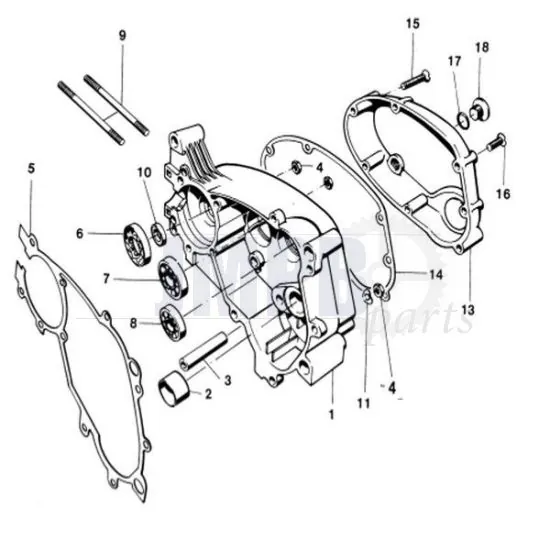

Exploded view carter right Kreidler 5G Indirect transmission

Grouped product items
Product Name	Qty
2 - Bearing bushing Kreidler Bronze Right Bearing bushing Kreidler Bronze 16 X 18 X 11MM Right DKK 101.00	Out of stock
3 - Stop pin Kickstarter / Spring Kreidler Stopper pin for Kickstarter Kreidler DKK 46.40
4 - M6 Nut Galvanized Din 934 Nut M6 Galvanized Din 934 DKK 0.31
5 - Crankcase Gasket Kreidler 5G BAC 0.25MM Crankcase gasket BAC 0.25MM Kreidler 5G DKK 25.35
6 - Bearing BO17 NSK Brass a piece Crankshaft bearing BO17 NSK / Brass cage Inner diameter 17MM Outer diameter 44MM Width 11MM A Piece Kreidler DKK 152.10

7 - Bearing 6004 C3 SKF Bearing SKF 6004 C3 Inner diameter 20MM Outer diameter 42MM Width 12MM Is used for; Kreidler Layshaft right DKK 46.71
8 - Bearing 6202 C3 SKF Bearing SKF 6202 C3 Inner diameter 15MM Outer diameter 35MM Width 11MM Is used for; Kreidler Main axle right Zundapp 3 Gears Crankshaft right DKK 38.92
9 - Cylinder studs Kreidler Cylinder studs Kreidler M8 X 120 4 Pieces DKK 46.40
10 - Seal Zundapp/Kreidler 17X28X6.5 A-Quality Seal 17x28x6.5 ( A-Quality ) Double Sealed Crankshaft Kreidler Left & Right Crankshaft Zundapp Left DKK 46.40
10 - Crankshaft seal Kreidler Standard Crankshaft seal Kreidler Standard model 17X28X7 DKK 15.21
10 - Crankshaft seal Kreidler VITON Crankshaft seal Kreidler VITON 17X28X7 A piece High temperature resistance / Long life Only useful with tuned engines! DKK 54.20
11 - Ruffled spring washer M6 Galvanized Din 137A Ruffled spring washer M6 Blue galvanized Din 137A DKK 0.62
13 - Clutch lid Kreidler Mokick & Moped Clutch lid Kreidler Mokick & Moped Replaces article number 15.60.04 DKK 772.16
14 - Clutch Lid Gasket Kreidler BAC Clutch lid gasket BAC Blue Thickness 0.5MM Kreidler all models DKK 23.32
15 - Bolt M6X40 Recessed Kreidler Clutch lid Bolt M6X40 Recessed Full thread For; Kreidler Clutch lid DKK 2.81
16 - Bolt M6X35 Galvanized Kreidler Bolt M6X35 Galvanized Full thread For; Kreidler Clutch lid DKK 3.51
17 - Sealing Oil Filler Cap / Drain Plug Kreidler Sealing For Oil filler cap / Drain plug Kreidler A Piece 12X16X2MM DKK 5.46
18 - Oil Filler / Draining Cap Kreidler as Original Oil filler / draining cap As Original Kreidler DKK 27.30
