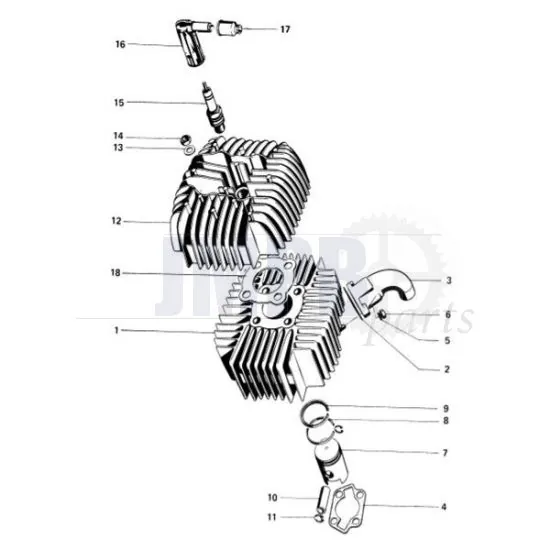

Cylinder Kreidler 5V Indirect

Grouped product items
Product Name	Qty
1 - Cylinder Kreidler 40MM Super - Booster Ports Cylinder 40MM / 50CC Kreidler superbreitwand Wide holes ( 55MM ) With piston Piston pin 14MM With base & head gasket Connection exhaust 32MM Piston with L-ring 12 HP is achievable Brand N/C - New Competition DKK 1,708.11	Out of stock
1 - 50CC Cylinder KTT Kreidler Super Cylinder Kreidler KTT Superbreitwand ( Wide tap ) 40MM / 50CC KTT 6.25HP Set comes with; Piston, Piston pin 14MM Head & base gasket DKK 1,318.13
2 - Intake Gasket Kreidler 5G BAC Intake gasket BAC Kreidler 5 Gears See images for sizes DKK 7.72
3 - Intake manifold Kreidler Parmakit 19X24MM Manifold Kreidler Parmakit For angled intake 19X24 Pass 19MM Connection carburettor 24M DKK 295.99
4 - Base gasket Kreidler 5G 0.25MM Base gasket 0.25MM Note, for wide holes Kreidler 5 Gears DKK 14.04
4 - Base gasket Kreidler 5 Gears 0.50MM Base gasket Kreidler 5 Gears. Note, for a wide plug. ( 5 Gears ) 0.50 MM DKK 15.21
5 - Ruffled spring washer M6 Galvanized Din 137A Ruffled spring washer M6 Blue galvanized Din 137A DKK 0.62
6 - M6 Nut Galvanized Din 934 Nut M6 Galvanized Din 934 DKK 0.31
7 - Piston 40mm (E) Meteor Kreidler Double Ring Meteor piston Kreidler 40MM Model with double piston ring Upper ring is a L-ring Tolerance ; E ( 39.970MM ) Pin 14MM DKK 311.59
7 - Piston 40mm (O) Meteor Kreidler Double Ring Piston Meteor Kreidler 40MM Piston with double ring, upper ring is a L-ring Tolerance Size O Pin 14MM DKK 311.59
7 - Piston 40mm (B) Meteor Kreidler Double Ring Meteor piston Kreidler 40MM Model with double piston ring Upper ring is a L-ring Tolerance; B ( 39.955MM ) Pen 14MM DKK 311.59
7 - Piston 40mm (I) Meteor Kreidler Double Ring Meteor Piston Kreidler 40MM Model with double piston ring Upper ring is a L-ring Tolerance ; I ( 39.990MM ) Pin 14MM DKK 311.59
7 - Piston 40mm (F) Meteor Kreidler Double Ring Meteor piston Kreidler 40MM Model with double ring Upper ring is a L-ring Tolerance; F ( 39.975MM ) Pin 14MM DKK 308.09
7 - Piston 40mm (C) Meteor Kreidler Double Ring Meteor piston Kreidler 40MM Model with double piston ring Upper ring is a L-ring Tolerance ; C ( 39.960MM ) Pin 14MM See images for sizes DKK 311.59
7 - Piston 40mm (L) Meteor Kreidler Double Ring Piston Meteor Kreidler 40MM Piston with double ring, upper ring is a L-ring Tolerance size L Pin 14MM DKK 311.59
7 - Piston 40mm (G) Meteor Kreidler Double Ring Meteor Piston Kreidler 40MM Model with double piston ring Upper ring is a L-ring Tolerance ; G ( 39.980MM ) Pin 14MM DKK 311.59
7 - Piston 40mm (N) Meteor Kreidler Double Ring Piston Meteor Kreidler 40MM Piston with double ring, upper ring is a L-ring Tolerance Size N Pin 14MM DKK 311.59
7 - Piston 40mm (K) Meteor Kreidler Double Ring Meteor piston Kreidler 40MM Model with double piston ring Upper ring is a L-ring Tolerance ; K ( 39.995MM ) Pin 14MM DKK 311.59
7 - Piston 40mm (D) Meteor Kreidler Double Ring Meteor piston Kreidler 40MM Model with double piston ring Upper ring is a L-ring Tolerance ; D ( 39.965MM ) Pin 14MM DKK 311.59
7 - Piston 40mm (M) Meteor Kreidler Double Ring Piston Meteor Kreidler 40MM Piston with double ring, upper ring is a L-ring Tolerance Size M Pin 14MM DKK 295.99
7 - Piston 40mm (A) Meteor Kreidler Double Ring Meteor piston Kreidler 40MM Model with double piston ring Upper ring is a L-ring Tolerance; A ( 39.95MM ) Pin 14MM DKK 311.59
7 - Piston 40mm (H) Meteor Kreidler Double Ring Meteor piston Kreidler 40MM Model with double piston ring Upper ring is a L-ring Tolerance ; H ( 39.985MM ) Pin 14MM DKK 300.29
8 - Piston Ring Kreidler 40X1.5B Piston ring Kreidler 40MM X 1.5 B-lock DKK 23.01
9 - Piston Ring Kreidler 40X2B L-Ring Piston ring Kreidler 40 X 2 BL ( L-ring ) DKK 69.80
10 - Piston pin Kreidler 14X33MM Mahle Piston pin Mahle 14 X 33MM Kreidler For 40MM Pistons DKK 101.00
11 - Piston pin clip 14MM Kreidler A piece Piston pin clip 14MM A Piece Kreidler DKK 3.51
12 - Cylinder head Kreidler 5G KTT Super 40MM Cylinder head KTT 40MM / 50CC For Super Breitwand ( Wide plug ) Piston pin 14MM Without damping rubbers Kreidler 5 Gears DKK 694.16
13 - M8 Washer Galvanized Din 125A M8 Washer Galvanized Din 125A DKK 0.39
14 - M8 Nut Galvanized Din 934 Nut M8 Galvanized Din 934 DKK 0.55

15 - Sparkplug Bosch W7AC Sparkplug Bosch. Type W7AC ( W175T1 ) ( Matches with a NGK B6HS ) Short shaft DKK 29.25
16 - Sparkplug cap metal Sparkplug cap metal. Usable for: Zundapp Kreidler Yamaha Puch DKK 38.61
16 - Sparkplug cap Suppressed 1K ohm Sparkplug cap Model as BERU Suppressed 1K ohm To use for; Zundapp Kreidler Puch DKK 85.40
17 - Grommet Sparkplug cap Merit Grommet Merit Sparkplug cap DKK 23.32
18 - Head gasket 50CC Kreidler 5G Head gasket 50CC / 40MM Note, for wide plug Kreidler 5 Gears DKK 19.42

1 - Cylinder Kreidler 40MM Super - Booster Ports

Cylinder

40MM / 50CC

Kreidler superbreitwand

Wide holes ( 55MM )

With piston

Piston pin 14MM

With base & head gasket

Connection exhaust 32MM

Piston with L-ring

12 HP is achievable

Brand N/C - New Competition

DKK 1,708.11

Out of stock

1 - 50CC Cylinder KTT Kreidler Super

Cylinder Kreidler KTT

Superbreitwand ( Wide tap )

40MM / 50CC KTT

6.25HP

Set comes with;

Piston, Piston pin 14MM

Head & base gasket

DKK 1,318.13

2 - Intake Gasket Kreidler 5G BAC

Intake gasket

BAC

Kreidler 5 Gears

See images for sizes

DKK 7.72

3 - Intake manifold Kreidler Parmakit 19X24MM

Manifold

Kreidler

Parmakit

For angled intake

19X24

Pass 19MM

Connection carburettor 24M

DKK 295.99

4 - Base gasket Kreidler 5G 0.25MM

Base gasket

0.25MM

Note, for wide holes

Kreidler 5 Gears

DKK 14.04

4 - Base gasket Kreidler 5 Gears 0.50MM

Base gasket Kreidler 5 Gears.
Note, for a wide plug. ( 5 Gears )
0.50 MM

DKK 15.21

5 - Ruffled spring washer M6 Galvanized Din 137A

Ruffled spring washer

M6

Blue galvanized

Din 137A

DKK 0.62

6 - M6 Nut Galvanized Din 934

Nut M6

Galvanized

Din 934

DKK 0.31

7 - Piston 40mm (E) Meteor Kreidler Double Ring

Meteor piston Kreidler

40MM

Model with double piston ring

Upper ring is a L-ring

Tolerance ; E ( 39.970MM )

Pin 14MM

DKK 311.59

7 - Piston 40mm (O) Meteor Kreidler Double Ring

Piston Meteor

Kreidler

40MM

Piston with double ring, upper ring is a L-ring

Tolerance Size O

Pin 14MM

DKK 311.59

7 - Piston 40mm (B) Meteor Kreidler Double Ring

Meteor piston Kreidler

40MM

Model with double piston ring

Upper ring is a L-ring

Tolerance; B ( 39.955MM )

Pen 14MM

DKK 311.59

7 - Piston 40mm (I) Meteor Kreidler Double Ring

Meteor Piston Kreidler

40MM

Model with double piston ring

Upper ring is a L-ring

Tolerance ; I ( 39.990MM )

Pin 14MM

DKK 311.59

7 - Piston 40mm (F) Meteor Kreidler Double Ring

Meteor piston Kreidler

40MM

Model with double ring

Upper ring is a L-ring

Tolerance; F ( 39.975MM )

Pin 14MM

DKK 308.09

7 - Piston 40mm (C) Meteor Kreidler Double Ring

Meteor piston Kreidler

40MM

Model with double piston ring

Upper ring is a L-ring

Tolerance ; C ( 39.960MM )

Pin 14MM

See images for sizes

DKK 311.59

7 - Piston 40mm (L) Meteor Kreidler Double Ring

Piston Meteor

Kreidler

40MM

Piston with double ring, upper ring is a L-ring

Tolerance size L

Pin 14MM

DKK 311.59

7 - Piston 40mm (G) Meteor Kreidler Double Ring

Meteor Piston Kreidler

40MM

Model with double piston ring

Upper ring is a L-ring

Tolerance ; G ( 39.980MM )

Pin 14MM

DKK 311.59

7 - Piston 40mm (N) Meteor Kreidler Double Ring

Piston Meteor

Kreidler

40MM

Piston with double ring, upper ring is a L-ring

Tolerance Size N

Pin 14MM

DKK 311.59

7 - Piston 40mm (K) Meteor Kreidler Double Ring

Meteor piston Kreidler

40MM

Model with double piston ring

Upper ring is a L-ring

Tolerance ; K ( 39.995MM )

Pin 14MM

DKK 311.59

7 - Piston 40mm (D) Meteor Kreidler Double Ring

Meteor piston Kreidler

40MM

Model with double piston ring

Upper ring is a L-ring

Tolerance ; D ( 39.965MM )

Pin 14MM

DKK 311.59

7 - Piston 40mm (M) Meteor Kreidler Double Ring

Piston Meteor

Kreidler

40MM

Piston with double ring, upper ring is a L-ring

Tolerance Size M

Pin 14MM

DKK 295.99

7 - Piston 40mm (A) Meteor Kreidler Double Ring

Meteor piston Kreidler

40MM

Model with double piston ring

Upper ring is a L-ring

Tolerance; A ( 39.95MM )

Pin 14MM

DKK 311.59

7 - Piston 40mm (H) Meteor Kreidler Double Ring

Meteor piston Kreidler

40MM

Model with double piston ring

Upper ring is a L-ring

Tolerance ; H ( 39.985MM )

Pin 14MM

DKK 300.29

8 - Piston Ring Kreidler 40X1.5B

Piston ring

Kreidler

40MM X 1.5

B-lock

DKK 23.01

9 - Piston Ring Kreidler 40X2B L-Ring

Piston ring Kreidler

40 X 2 BL ( L-ring )

DKK 69.80

10 - Piston pin Kreidler 14X33MM Mahle

Piston pin Mahle

14 X 33MM

Kreidler

For 40MM Pistons

DKK 101.00

11 - Piston pin clip 14MM Kreidler A piece

Piston pin clip

14MM

A Piece

Kreidler

DKK 3.51

12 - Cylinder head Kreidler 5G KTT Super 40MM

Cylinder head KTT

40MM / 50CC

For Super Breitwand ( Wide plug )

Piston pin 14MM

Without damping rubbers

Kreidler 5 Gears

DKK 694.16
