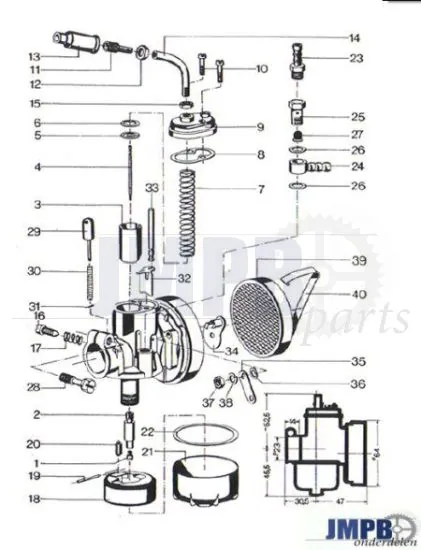

Exploded view bing 17MM
Exploded view bing 17MM

Exploded view bing 17MM

Be the first to review this product Be the first to review this product
Grouped product items
Product Name Qty
2 - Needle Jet 2.17 Bing 12-15-17MM Original
Needle Jet 2.17 Bing 12-15-17MM Original
  • Needle Jet
  • Bing Original
  • Size 2.17
  • For small Bing nozzles

    Fits on:
  • Bing 12MM Puch Maxi / Zundapp
  • Bing 15MM Puch Maxi / Zundapp
  • Bing 17MM Puch Monza
  • Bing 17MM Kreidler
DKK 89.70
2 - Needle Jet 2.24 Bing 12-15-17MM Original
Needle Jet 2.24 Bing 12-15-17MM Original
  • Needle Jet Bing Original
  • Size 2.24
  • For small Bing nozzles

    Fits on:
  • Bing 12MM Puch Maxi / Zundapp
  • Bing 15MM Puch Maxi / Zundapp
  • Bing 17MM Puch Monza
  • Bing 17MM Kreidler
DKK 89.70
3 - Throttle Drum Bing 17MM
Throttle Drum Bing 17MM
  • Throttle drum Bing 17MM
    Fits on;
  • 17MM Bing Puch Monza
  • 17MM Bing Kreidler
  • 17MM Bing Zundapp
DKK 58.50
4 - Throttle Needle Bing 17MM
Throttle Needle Bing 17MM
  • Throttle needle Bing 17MM
    Fits on;
  • 17MM Bing Puch Monza
  • 17MM Bing Kreidler
  • 17MM Bing Zundapp
DKK 37.05
5 - Throttle needle clip Bing 12-15-17MM
Throttle needle clip Bing 12-15-17MM
  • Throttle needle clip

    For;
  • Bing 12MM Puch Maxi / Zundapp
  • Bing 15MM Puch Maxi / Zundapp
  • Bing 17MM Puch Monza
  • Bing 17MM Kreidler
  • Bing 17MM Zundapp
DKK 11.70
6 - Spring Plate throttle slide Bing 12-15-17MM
Spring Plate throttle slide Bing 12-15-17MM
  • Spring plate throttle slide Bing
    For;
  • Bing 12MM Puch Maxi / Zundapp
  • Bing 15MM Puch Maxi / Zundapp
  • Bing 17MM Puch Monza
  • Bing 17MM Kreidler
DKK 7.02
7 - Throttle drum spring Bing 17MM
Throttle drum spring Bing 17MM
  • Throttle drum spring
  • Bing 17MM

    Fits on:
  • 17MM Bing Puch Monza
  • 17MM Bing Kreidler
  • 17MM Bing Zundapp

  • See images for sizes
DKK 7.41
8 - Throttle Drum Cover Gasket Bing 17MM
Throttle Drum Cover Gasket Bing 17MM
  • Throttle drum cover gasket
    Usable for;
  • Bing 17MM Puch Monza
  • Bing 17MM Kreidler

  • See images for sizes
DKK 7.41
9 - Throttle Drum Cover Bing 17MM
Throttle Drum Cover Bing 17MM
  • Throttle drum cover

    Fits on:
  • Bing 14MM 1/14/99
  • Bing 17MM Puch Monza
  • Bing 17MM Kreidler
DKK 136.50
10 - Bolt Throttle Cover Bing 10-12-15-17MM
Bolt Throttle Cover Bing 10-12-15-17MM
  • Bolt throttle cover

    For;
  • Bing 12MM Puch Maxi / Zundapp
  • Bing 15MM Puch Maxi / Zundapp
  • Bing 17MM Puch Monza
  • Bing 17MM Zundapp
  • Bing 17MM Kreidler
  • Bing 10MM Kreidler 1-10-77
DKK 5.46
11 - Cable adjustment screw Bing 12-15-17MM
Cable adjustment screw Bing 12-15-17MM
  • Cable adjustment screw ( 5MM )
  • The screw in the elbow

    Fits;
  • Bing 12MM Puch Maxi / Zundapp
  • Bing 15MM Puch Maxi / Zundapp
  • Bing 17MM Puch Monza
  • Bing 17MM Kreidler
DKK 20.67
12 - Adjustment nut Bing 10-12-15-17MM 5MM
Adjustment nut Bing 10-12-15-17MM 5MM
  • Adjustment nut Bing 5MM
  • ( Nr 12 of the extra picture )
    Fits on;
  • Bing 12MM Puch Maxi / Zundapp
  • Bing 15MM Puch Maxi / Zundapp
  • Bing 17MM Puch Monza
  • Bing 17MM Kreidler
  • Bing 17MM Zundapp
  • Bing 10MM Kreidler 1-10-77
DKK 6.24
13 - Cable Hat Dellorto / Bing
Cable Hat Dellorto / Bing
  • Cable hat
  • To use on various types of carburetors

  • Dellorto PHBG
  • Dellorto SHA
  • Bing 10MM
  • Bing 12-15MM
  • Bing 17MM
DKK 12.48
14 - Elbow Bing 12-15-17MM
Elbow Bing 12-15-17MM

Bend Bing carburettor. ( 6MM )
Fits;

  • Bing 12MM Puch Maxi / Zundapp
  • Bing 15MM Puch Maxi / Zundapp
  • Bing 17MM Puch Monza
  • Bing 17MM Kreidler
DKK 22.23
15 - Adjustment nut Bing 10-12-15-17MM 6MM
Adjustment nut Bing 10-12-15-17MM 6MM
  • Adjustment nut Bing 6MM
  • ( Nr 15 of the extra picture )
    Fits on;
  • Bing 12MM Puch Maxi / Zundapp
  • Bing 15MM Puch Maxi / Zundapp
  • Bing 17MM Puch Monza
  • Bing 17MM Kreidler
  • Bing 17MM Zundapp
  • Bing 10MM Kreidler 1-10-77
DKK 6.63
16 - Idle Adjusting Screw Bing 17MM
Idle Adjusting Screw Bing 17MM
  • Idle adjusting screw

    Fits on;
  • Bing 17MM Puch Monza
  • Bing 17MM Kreidler
DKK 12.48
17 - Idle Adjusting Screw Spring Bing 17MM
Idle Adjusting Screw Spring Bing 17MM
  • Idle adjusting screw spring Bing 17MM
    Fits on;
  • 17MM Bing Puch Monza
  • 17MM Bing Kreidler
DKK 5.85
Out of stock
18 - Float Bing 12-15-17MM
Float Bing 12-15-17MM

Floater.
Fits;

  • Bing 12MM Puch Maxi / Zundapp
  • Bing 15MM Puch Maxi / Zundapp
  • Bing 17MM Puch Monza
  • Bing 17MM Kreidler
DKK 31.12
19 - Float Pin Bing 10-12-15-17MM
Float Pin Bing 10-12-15-17MM
  • Floater pin
    For;
  • Bing 12MM Puch Maxi / Zundapp
  • Bing 15MM Puch Maxi / Zundapp
  • Bing 17MM Puch Monza
  • Bing 17MM Kreidler
  • Bing 10MM Kreidler 1-10-77
DKK 5.85
20 - Float Needle Bing 10-12-15-17MM
Float Needle Bing 10-12-15-17MM
  • Floater needle

    Fits:
  • Bing 12MM Puch Maxi / Zundapp
  • Bing 15MM Puch Maxi / Zundapp
  • Bing 17MM Puch Monza
  • Bing 17MM Kreidler
  • Bing 10MM Kreidler 1-10-77


    And for Bing Type 17 and 18, Squared Carburettors:
  • 18/12/112 ( Puch )
  • 17/10/103 ( Zundapp )

  • See extra images
Special Price DKK 23.01 Regular Price DKK 46.80
21 - Float Bowl Bing 10-12-15-17MM
Float Bowl Bing 10-12-15-17MM
  • Floatertank
    For;
  • Bing 12MM Puch Maxi / Zundapp
  • Bing 15MM Puch Maxi / Zundapp
  • Bing 17MM Puch Monza
  • Bing 17MM Kreidler
  • Bing 10MM Kreidler 1-10-77
DKK 46.02
22 - Float Gasket Bing 10-12-15-17MM
Float Gasket Bing 10-12-15-17MM
  • Floater gasket
    Fits;
  • Bing 12MM Puch Maxi / Zundapp
  • Bing 15MM Puch Maxi / Zundapp
  • Bing 17MM Puch Monza
  • Bing 17MM Kreidler
  • Bing 10MM Kreidler 1-10-77
DKK 7.02
23 - Hose Nozzle Bing 10-12-15-17MM
Hose Nozzle Bing 10-12-15-17MM
  • Hose nozzle
    Fits;
  • Bing 12MM Puch Maxi / Zundapp
  • Bing 15MM Puch Maxi / Zundapp
  • Bing 17MM Puch Monza
  • Bing 17MM Kreidler
  • Bing 10MM Kreidler 1-10-77
DKK 15.21
24 - Banjo Angled Bing 12-15MM
Banjo Angled Bing 12-15MM
  • Banjo
  • Bing 12-15MM
  • Angled connection
DKK 27.30
25 - Banjo bolt Bing 12-15MM
Banjo bolt Bing 12-15MM
  • Banjo bolt
  • Bing
  • 12-15MM
DKK 23.32
26 - Fiber Ring Bing 10-12-15-17MM
Fiber Ring Bing 10-12-15-17MM
  • Fiber gasket Bing
  • For Banjo bolt or Hose nozzle

    Fits;
  • Bing 12MM Puch Maxi / Zundapp
  • Bing 15MM Puch Maxi / Zundapp
  • Bing 17MM Puch Monza
  • Bing 17MM Kreidler
  • Bing 10MM Kreidler 1-10-77
DKK 3.90
32 - Choke Slide Bing 17MM
Choke Slide Bing 17MM
  • Choke slide Bing 17MM
    Fits on;
  • 17MM Bing Puch Monza
  • 17MM Bing Kreidler
  • 17MM Bing Zundapp
DKK 21.45
33 - Choke Pin Bing 17MM
Choke Pin Bing 17MM
  • Choke pin Bing
    Fits on;
  • Bing 17MM Puch Monza
  • Bing 17MM Kreidler
  • Bing 17MM Zundapp
DKK 14.82
39 - Airfilter Big Bing Kreidler/Puch Monza
Airfilter Big Bing Kreidler/Puch Monza
  • Airfilter
  • Bing
  • Large model ( 60MM )

Fits;

  • Bing 17MM Kreidler
  • Bing 17MM Puch Monza
DKK 77.60
In stock, immediately available.
In stock
SKU
--EXPBING17MM

Find all your necessary parts for your Bing 17MM Carburetor.

Find all your necessary parts for your Bing 17MM Carburetor.
