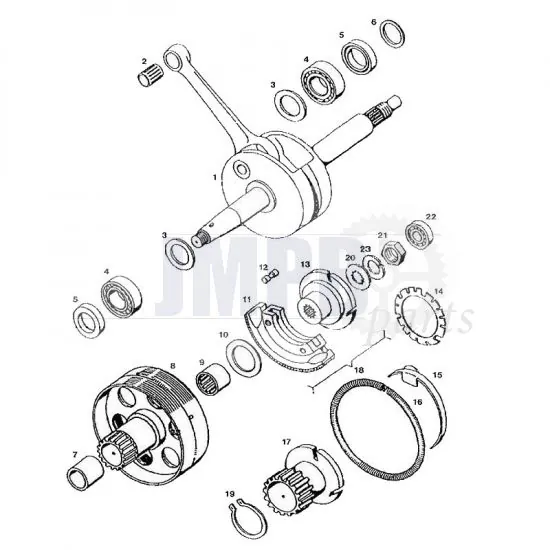

Exploded drawing Clutch / Crankshaft Tomos Standard

Grouped product items
Product Name	Qty
1 - Crankshaft A35 Top Racing - Standard Crankshaft Tomos A35 Top Racing Standard DKK 928.15
1 - Crankshaft Tomos A35 Import Crankshaft Import Model with solid bronze bus ( 12MM ) Tomos A35 DKK 382.18
1 - Crankshaft A35 DMP - Standard Crankshaft standard Tomos A35 DKK 545.58
2 - Needle bearing Tomos A3/A35 Needle bearing Tomos A3/A35 12MM DKK 38.61
3 - Shimring Crankshaft 0.20MM Tomos Shimring Crankshaft 0.20MM See extra image For the following models; Tomos Classic Tomos Fun Sport Tomos Flexer Tomos Standard Tomos A35 Tomos Pack'R Tomos Streetmate Tomos Youngst'R Tomos Quadro DKK 15.52
4 - Bearing 6203 C3 SKF Bearing SKF 6203 C3 Inner diameter 17MM Outer diameter 40MM Width 12MM Usable for: Puch Maxi, Left side Crankshaft Puch Maxi, Sprocket axle Yamaha FS1 Gears Zundapp 3/4/5 Gears, Crankshaft Left Zundapp 3 Gears, Front sprocket Tomos A3/A35, Crankshaft Left/Right Honda MT/MB, Balance axle Right DKK 38.22
5 - Crankshaft seal Tomos Double 17X35X7 Crankshaft seal 17 X 35 X 7 ( Double sealed ) Tomos al modelsn Tomos Classic Tomos Fun Sport Tomos Flexer Tomos Standard Tomos A35 Tomos Pack'R Tomos Streetmate Tomos Youngst'R Tomos Quadro DKK 25.35
6 - Filler Ring Crankshaft/Clutch Tomos Filler ring 2MM Crankshaft/ bottom clutch house Tomos See extra image DKK 19.50
7 - Bearing bushing Clutch Tomos A35 Bearing bushing Clutch Tomos from A35 models See extra image, number 7 DKK 38.61
8 - Clutch housing Tomos A35 Clutch housing Tomos Standard Tomos Flexer Tomos Quadro Tomos Youngst'r Tomos Classic Tomos Luxe Tomos Revival Tomos Funsport Tomos Streetmate DKK 1,162.14
9 - Needle bearing Clutch Tomos Needle bearing Clutch Tomos See extra image number 9 DKK 101.00
10 - Shimring Clutch Tomos 0.50MM Shimring / Filler Clutch See extra image For the following models; Tomos Classic Tomos Fun Sport Tomos Flexer Tomos Standard Tomos A35 Tomos Pack'R Tomos Streetmate Tomos Youngst'R Tomos Quadro DKK 13.65
10 - Shimring Clutch Tomos 0.30MM Shimring / Filling ring Clutch 0.30 MM See extra image For the following models; Tomos Classic Tomos Fun Sport Tomos Flexer Tomos Standard Tomos A35 Tomos Pack'R Tomos Streetmate Tomos Youngst'R Tomos Quadro DKK 13.65
11 - Clutch Shoes Tomos A35 3-Pieces Clutch shoes set 3-Pieces Can be used for 1st or 2nd gear Tomos A35 DKK 136.50
12 - Pen Clutch shoes Tomos Pen Clutch shoes See extra image nr. 12 Tomos DKK 17.08
14 - Pressure spring Clutch Tomos Pressure spring Clutch Tomos See extra image nr 14 DKK 38.61
15 - Clamping spring Clutch Tomos Clamping spring Clutch See extra Image nr. 15 Tomos DKK 37.05	Out of stock
16 - Clutch spring Tomos 1st Gear Clutch spring 1st Gear Tomos Classic Tomos Standard Tomos Flexer Tomos Quadro Tomos A3 Tomos A35 Tomos Luxe Tomos Funtastic Tomos Taxxity Tomos Revival Tomos Youngst'R Tomos Sprint Tomos Streetmate DKK 19.50
16 - Clutch spring Tomos 2nd Gear Clutch spring 2nd Gear Tomos Classic Tomos Standard Tomos Flexer Tomos Quadro Tomos A3 Tomos A35 Tomos Luxe Tomos Funtastic Tomos Taxxity Tomos Revival Tomos Youngst'R Tomos Sprint Tomos Streetmate DKK 19.50
18 - Clutch set Tomos A35 2nd gear Original Clutch set Tomos A35 2de gear Original DKK 974.56
19 - Circlip Clutch Tomos 28MM Circlip Clutch Tomos 28MM See extra image number 19 DKK 6.63
20 - Lock washer Tomos Clutch Lock washer Tomos Clutch Tomos Various models See extra image DKK 4.68
21 - Clutch / Flywheel nut Tomos Clutch / Flywheel nut See extra image For the following models; Tomos Classic Tomos Fun Sport Tomos Flexer Tomos Standard Tomos A35 Tomos Pack'R Tomos Streetmate Tomos Youngst'R Tomos Quadro DKK 3.90
22 - Bearing 608 SKF Bearing SKF Size 608 Inner diameter 8MM Outer diameter 22MM Width 7MM Is used for; Tomos A3/A35 Carter lid DKK 46.02
