Exploded View Drawings Yamaha FS1 2RU

Grouped product items
Product Name	Qty
6 - Spring washer M5 SS Yamaha Original Spring washer M5 Stainless Steel Original Yamaha DKK 5.85
9 - Oil pump hose 3X5MM - 5 Meter Oil pump hose green / Transparent 3X5MM Length 5 Meter DKK 31.12
10 - Banjo bolt Oil pump Yamaha FS1 Banjo bolt Oil pump Yamaha FS1 DKK 77.60
13 - Oil pump / Crankcase Gasket Yamaha FS1/DT Gasket between the oil pump and Crankcase / Carter Yamaha FS1 Yamaha DT DKK 14.43
14 - Cylinder screw Black M5X16 Din 7985H Cylinder screw Black M5X16 Din 7985H DKK 3.82
15 - Seal FS1 10X21X5 Oil pump Seal Oil pump Size; 10 X 21 X 5 Fits on; Yamaha FS1 DKK 23.01
21 - Axle Circlip 8MM Yamaha Axle Circlip 8MM A Piece Is used on many Yamaha models Oil pump shaft Yamaha FS1 / DT Gear fork axle Yamaha FS1 DKK 2.73

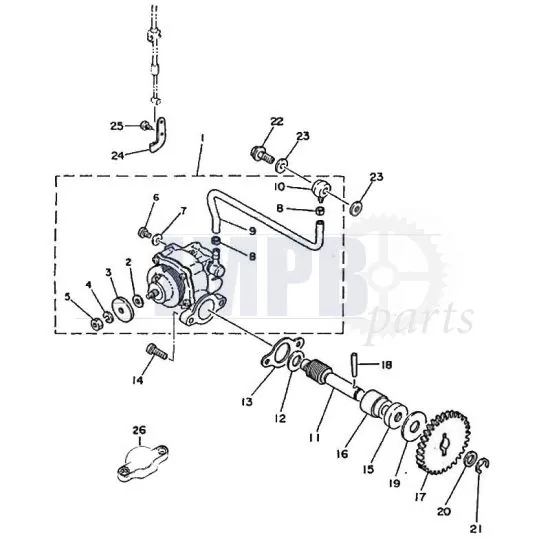

Oil pump Yamaha FS1 2RU
