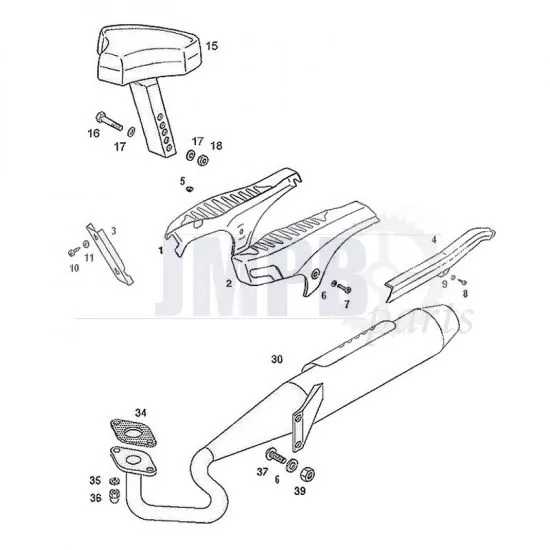

Exploded drawing seat / frame Tomos Standard

Grouped product items
Product Name	Qty
1 - Side panel set Tomos A35 Unpainted Set side panels Unpainted Left & Right Tomos A35 DKK 241.39	Out of stock
1 - Side panel set Tomos A35 Chromed Set side panels Chromed Left & Right Tomos A35 DKK 311.59
1 - Side panel set Tomos A35 Black Painted Set side panels Black Painted Left & Right Tomos A35 DKK 284.69
1 - Side panel set Tomos A35 Matt Black Set side panels Matt black Left & Right Tomos A35 DKK 295.99
4 - Chainguard Tomos A35 Black Chainguard Black Tomos A35 DKK 97.50
5 - Rubber Side cover / Grommet cable Oil Sensor Tomos Rubber Side cover Tomos Can be used as grommet for the oil sensor cable See extra images DKK 17.86
6 - Flat washer Tomos M6 Flat washer For Tomos Side panels M6 ( Outer diameter 18MM ) Galvanized DKK 3.12
7 - Flange bolt Tomos M6X16 Flange bolt M6X16 A Piece Fits on; Side panel Tomos Standard Rear carrier Tomos DKK 3.12
8 - Plate Screw Galvanized 4.8X13 Din 6928C Plate screw Galvanized 4.8X13 Din 6928C DKK 1.17
8 - Plate Screw Galvanized 4.8X13 Din 79676C Plate Screw Hexagonal. Galvanized. Size; 4.8X13 Din 7976C DKK 3.12
9 - Flat washer Tomos M5 Flat washer Tomos Chainguard M5 Outer diameter 15MM DKK 1.56
10 - Plate Screw Galvanized 4.2 X 19 Din 7981 Plate Screw Galvanized Size: 4.2 X 19 Din 7981 DKK 1.17
11 - M4 Washer Galvanized Din 125A M4 Washer. Galvanized. Din 125A DKK 0.39
15 - Seat Tomos A3/A35 Black with Text Seat Black Model with Text "Tomos" Tomos A3/A35 DKK 272.59
16 - Hex bolt M8X55 Galvanized Din 931 Hex bolt M8X55 Verzinkt Full thread Din 931 DKK 2.73
17 - M8 Washer Galvanized Din 125A M8 Washer Galvanized Din 125A DKK 0.39
18 - M8 Locknut Galvanized Din 985 M8 Locknut Galvanized Din 985 DKK 1.17
30 - Exhaust Tomos A35 / Flexer Speedy 26MM Chrome Exhaust Standard model Model Speedy Chromed 26MM Tomos A35 / Flexer Additional Warranty Information, see Downloads DKK 389.59
30 - Exhaust Tomos A35 / 22MM Chrome Exhaust Standard model Chromed 22MM Tomos A35 Additional Warranty Information, see Downloads DKK 350.98
34 - Exhaust gasket Tomos Standard Exhaust gasket Standard Tomos DKK 5.85
34 - Exhaust gasket Tomos Big Exhaust gasket Big Tomos DKK 10.14
35 - M6 Spring washer Flat Galvanized Din 127 M6 Spring washer Flat Galvanized Din 127 DKK 0.15
36 - M6 Nut Galvanized extended 3D Extentend nut M6 / 3D Galvanized Ideal to use for exhaust studs or as cylinder head nut 6MM A piece DKK 3.12
36 - Exhaust nut brass M6 Tall Model Exhaust nut Brass M6 ( tall model ) A Piece Usable for: Puch Tomos Kreidler DKK 7.72
37 - Flange bolt Galvanized Toothed M6X20 Din 6921 Flange bolt Toothed Galvanized M6X20 Din 6921 DKK 3.12
39 - M6 Locknut Galvanized Din 985 M6 Locknut Galvanized Din 985 DKK 0.39
